NXT RR-Robot Controlled in Articular Space
A Lego Mindstorms robot with two rotary joints is used do draw on paper. In this first version of the robot, the motor positions are manually controlled using the buttons on the NXT brick and an additional pushbutton to select the motor to be commanded.
Video
Robot Description
Articular Coordinates
Articular Coordinates can be used to determine the position of the tool-tip of a robot. Instead of using the x- and y- coordinates of the well known Cartesian Coordinate system, the angles Θ1 and Θ2 of the robot joints are used.
A robot that is using the Articular Coordinates to determine its posture is controlled in Articular Space.
The robot is built by connecting two Lego motors, forming a serial robot arm with an "RR" configuration. Each "R" stands for one of the rotational joints. At the end of the arm, a tool can be attached. In this example, a pen was used to trace the movement.
The motor angles are controlled manually, thus forming a robot controlled in articular space. A push button is used to determine which of the motors is to be moved. Then the left an right button of the NXT brick increment or decrement the motor angle by one degree.

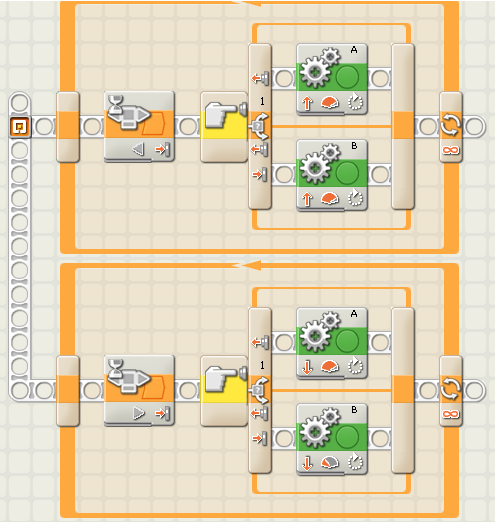

NXT G-Code to control the robot
G Code
The program consists of two endless loops running at the same time. The first loop waits until the left button is pressed. Depending if the push-button connected at port 1 is pushed down or not, the second motor (Motor B) or the first motor (Motor A) is turned one degree counter-clockwise. The second loop is identical, except that the right button is used to turn the motors one degree clockwise.
Future work
The next step will be to determine the Jacobian Matrix of this robot in order to control the movement not in articular, but Cartesian coordinates.
